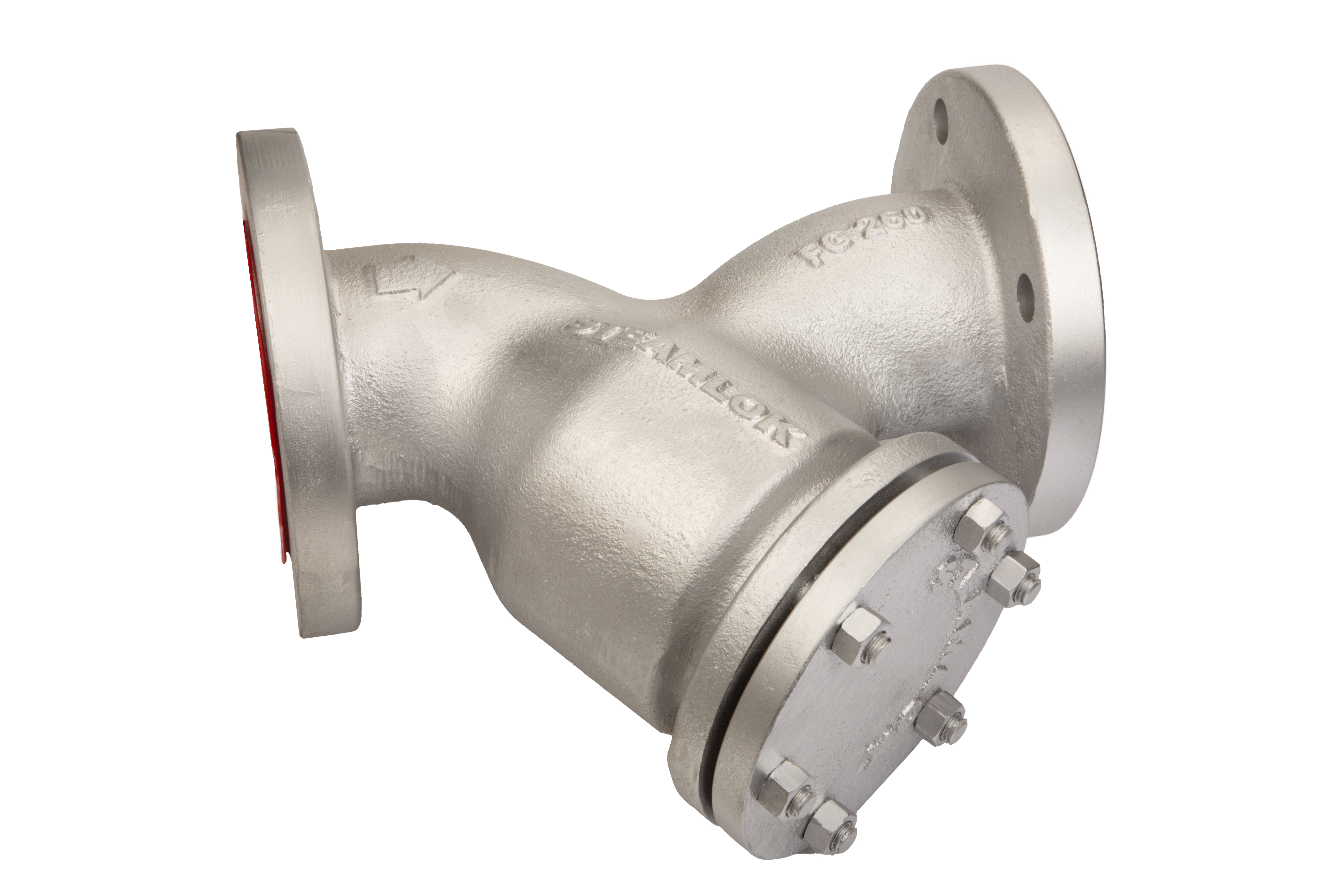

Strainer (Y- Type) SLSTR15/SLSTR25

Y- strainer is a product which is used to remove unwanted dirt particles in the form of solid, liquid or gases from main stem lines by using of wire meshed or perforated screen element. It is used before valves, control valves, pumps, steam traps & other product to protect.

Pharma / Clean steamTrap

  • Size: 15NB~ 200NB
  • Pipe Connections: Screwed – BSP, BSPT & NPT, Socket Weld, Flanged – ASA 150, ASA 300
  • MOC: ASTM A216 Gr. WCB
  • Screen: AISI 304
  • Gasket: Graphite with AISI 304
  • Certification: IBR Approval/EN10204-3.1

Unique Features

  • • Uniquely designed Y – type Strainers.
  • • Material of construction are in Cast Steel (WCB) (SLSTR25)& Cast Iron (SLSTR15).
  • • Bolted strainer cap above 40NB size for ease of maintenance.
  • • Drain plug as an optional feature for easy upkeep of strainer.
  • Download brochure for more details: Strainer (Y- Type) SLSTR15/SLSTR25
