Disc Check Valvesare wafer type non return valve. DCV is designed for handling water, steam and condensate. Due to spring-loadeddesign,it allows flow only in one direction and prevent flow in the reverse direction.

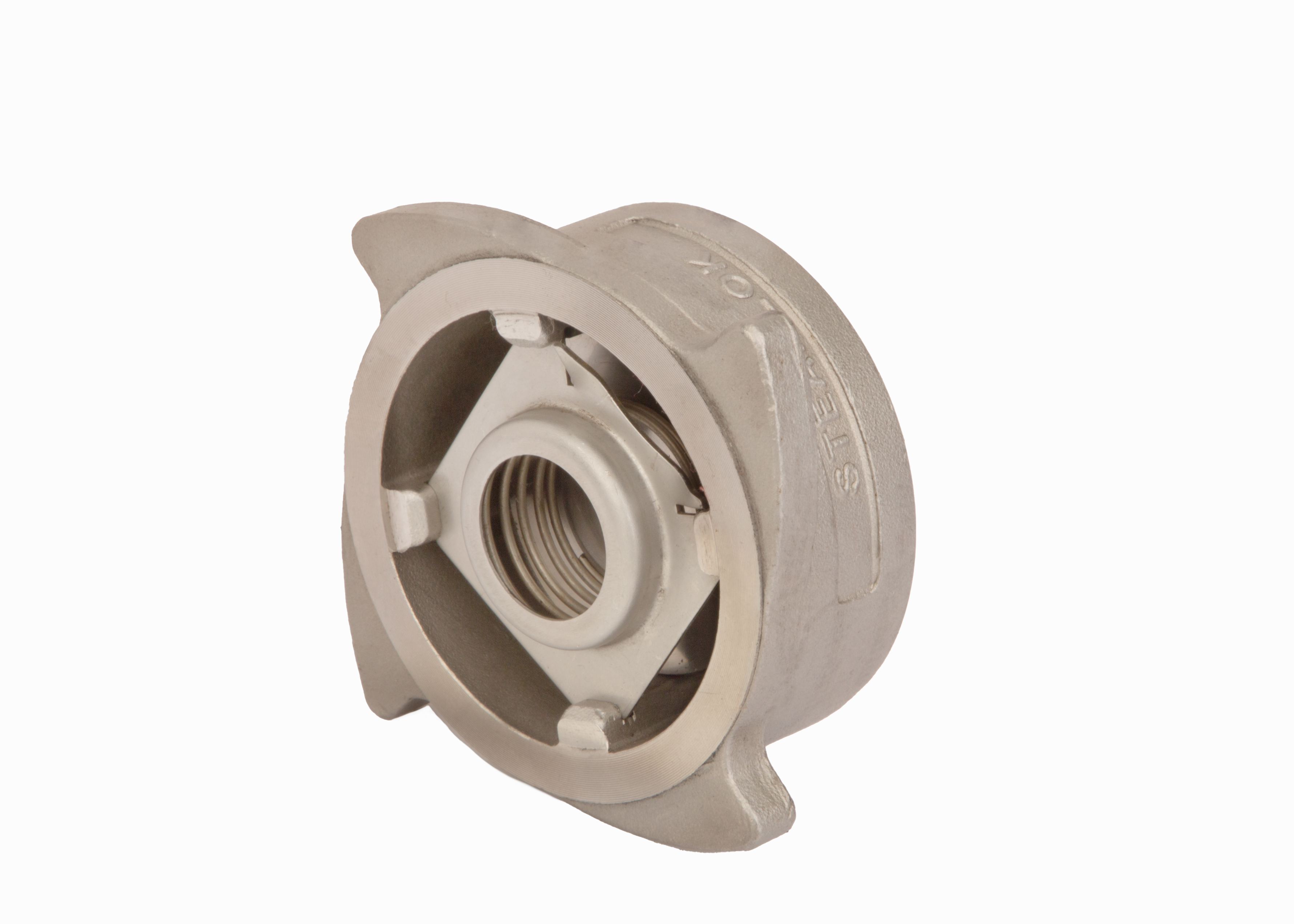

Disc Check Valves (SLDCV77)
Size: 15NB~100NB
Connections: Sandwiched flanged- Between two flanges ASA150, ASA300
MOC: ASTM A 351 GR. CF8M
Spring: AISI 316
Disc: AISI 316
Max. Allowable Pressure: 49.6 bar (g)
Max. Allowable Temp: 425 deg. C
Certification: IBR Approval/ EN10204-3.1
Unique Features
• Uniquely & compact designed Disc Check valve.
• Material of construction in stainless steel (CF8M).
• Light in weight.
• It is suitable for wide range of fluids like liquids, steam, gas in process application.
